Real-World Deployment (real branch)

This section lists the Real-World Deployment of the Patrolling Trash-Collecting Robot project, organized by functionality. For system overview and environment setup, see the Project Introduction.

cd ~/rsp_ws/src/rsp-project-team-emrs
git checkout real   # for real robot

Hardware and Drivers

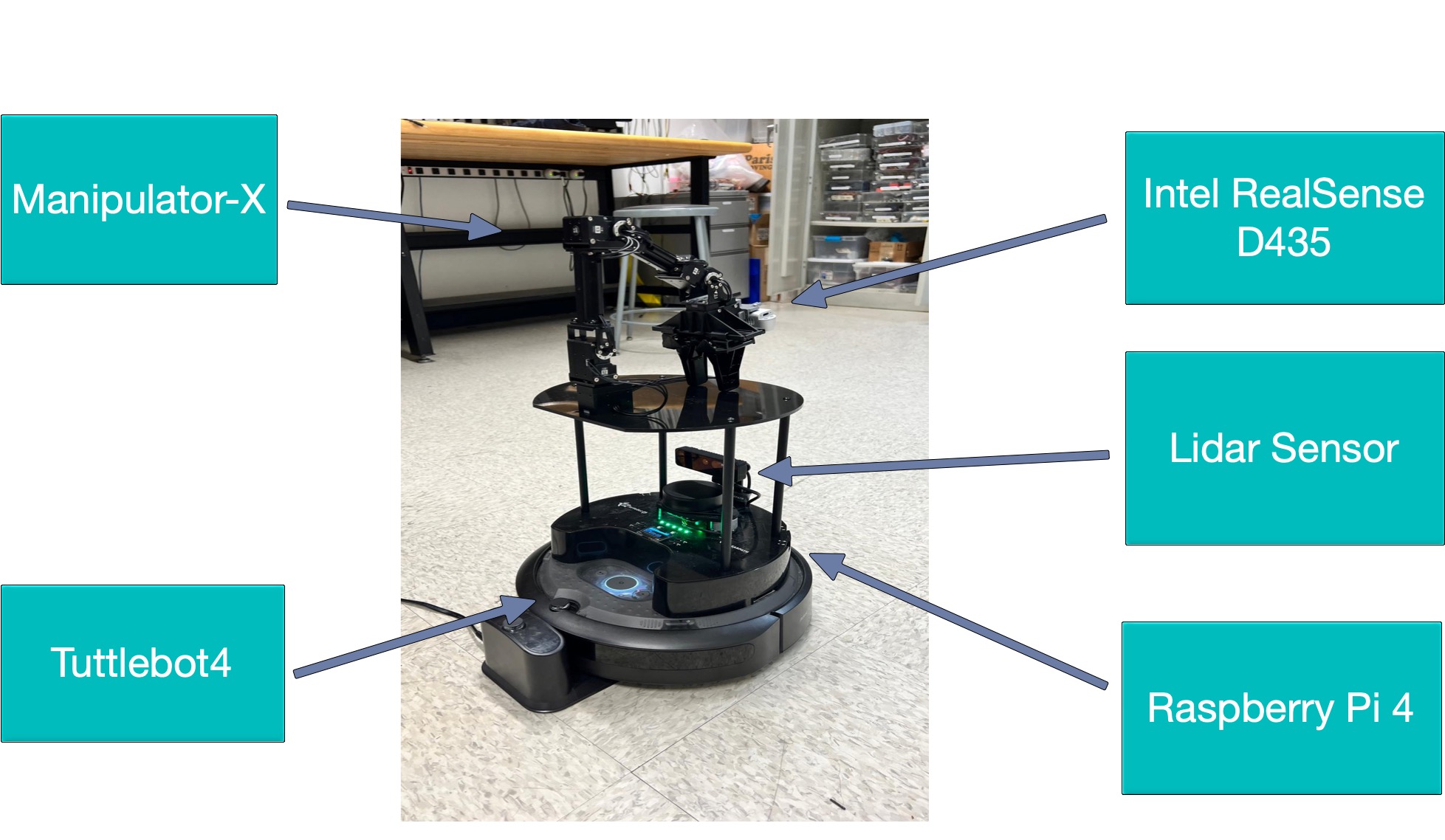

Physical Robot

  • Description: Integration on TurtleBot4 with OpenManipulator-X, LiDAR, RealSense.

  • Driver Nodes:

    • turtlebot4_node: ROS2 driver for Create3 base

    • open_manipulator_node: controller for arm joints

    • Sensor drivers for LiDAR and RealSense

  • Setting of USB3.0: We used USB 3.0 for the OAK-D and RealSense cameras to handle the high bandwidth needed for streaming RGB and depth data at full resolution and frame rate—something USB 2.0 couldn’t support without frame drops. Since the Raspberry Pi couldn’t supply enough power to run both cameras and the robot arm, we added a separate external power supply for the arm to ensure stable performance without overloading the Pi.

TurtleBot4 Setup

Warning

Make sure the Turtlebot4 is in Access Point (AP) mode with namespace “emrs”, following the instructions in https://turtlebot.github.io/turtlebot4-user-manual/setup/basic.html.

Connect to the Turtlebot4 network and access the Create3 webserver through the Raspberry Pi’s ip address and port 8080.

example: 192.168.28.24:8080

Follow the instructions here (https://turtlebot.github.io/turtlebot4-user-manual/setup/discovery_server.html) to set up Discovery Server on the Turtlebot4 and get its topics on your own PC.

SLAM - Generating a map

Check that you can see the Turtlebot4 topics on your PC by running

ros2 topic list

You should see topics multiple topics with prefix “emrs”. If you do not, check that you are connected to the AP network, run “source /etc/turtlebot4_discovery/setup.bash”, “ros2 daemon stop”, and “ros2 daemon start”. Check the topic list and ensure that they are being published to by echo-ing or checking the hz. Finally, you can run the following command:

ros2 launch turtlebot4_navigation slam.launch.py namespace:=emrs
ros2 launch turtlebot4_viz view_robot.launch.py namespace:=emrs

Connect the teleop controller and drive the robot around the room, making sure the map on Rviz is continuously growing. Once satisfied with the map, save it by calling

ros2 run nav2_map_server map_saver_cli -f "map_name" --ros-args -p map_subscribe_transient_local:=true -r __ns:=/emrs

And move the pgm and yaml file to the maps folder in the turtlebot4_manipulator_navigation package.

Localization, Navigation, and Patrolling

Note: the localization command may not properly run if the robot has been running for a while. In order to guarantee success of the command, restart the Turtlebot4 and make sure you are receiving its topics. Now you can run localization:

ros2 launch turtlebot4_manipulator_navigation navigate.py map_name:=wyman_157_hd.yaml

changing the map name to whatever you saved your SLAM map as. Once Rviz opens and the map appears, use Rviz to give an initial 2D pose. The robot model, laser scan, costmap/voxels should appear. Once you see the voxels, you can input Nav2 goals, taking note of the position and orientation to save later as a patrol route. Once you are satisfied, edit the “patrol_waypoints.yaml” file with your waypoints, where patrol_route should be a flattened array with every 6 elements corresponding to, x, y, z, qx, qy, qz, qw of each waypoint. Once a patrol route is saved, restart the Turtlebot4 and you can now run the patrol. In order to run the patrol, run the navigate command above, wait for the voxels to appear, then run:

ros2 launch turtlebot4_manipulator_navigation patrol.py

You should see the robot start to move in the patrol route you saved earlier.

Hand-Eye Calibration (real branch)

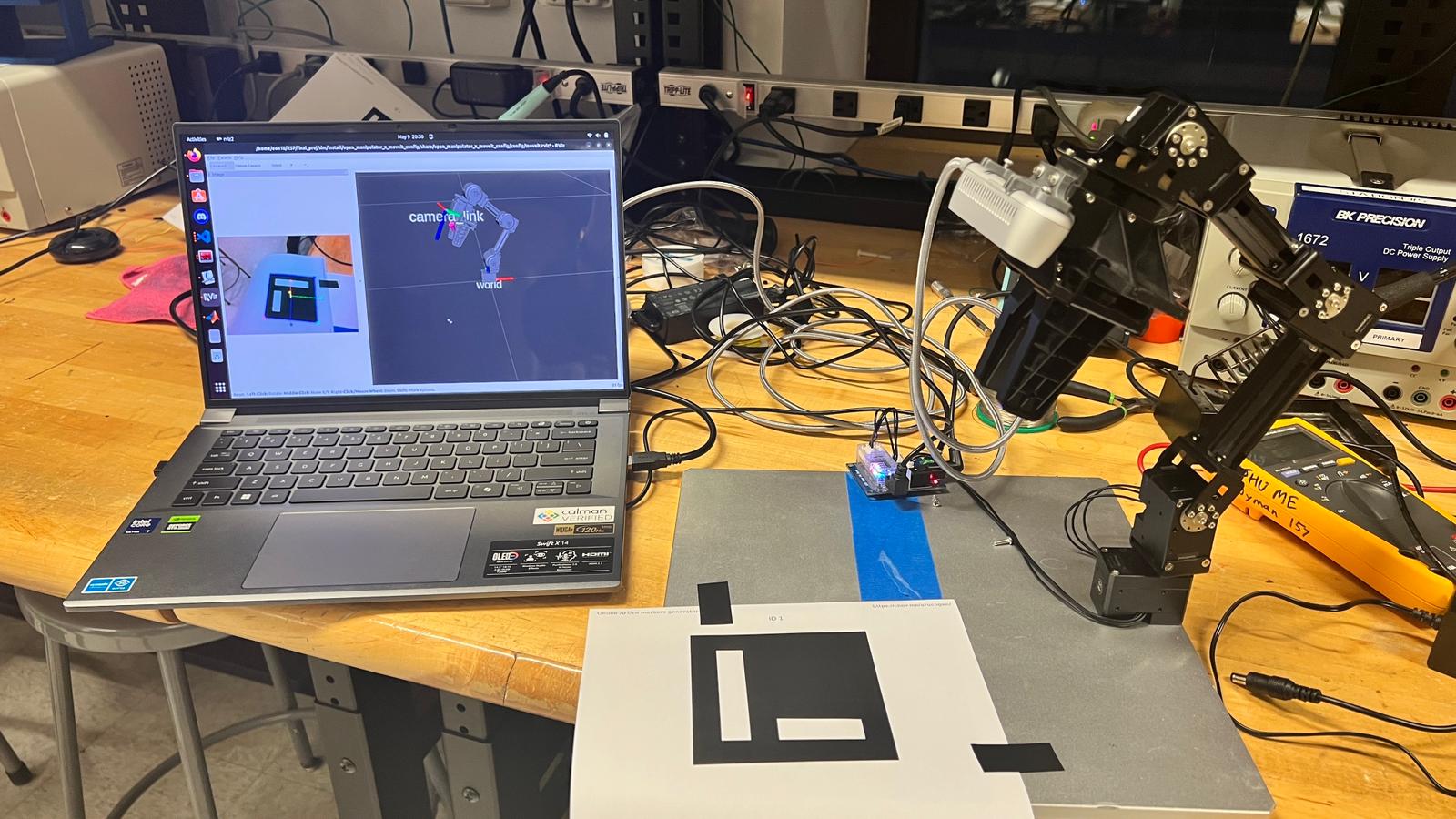

Hand-Eye Calibration

  • Description: We use the same way from ASBR to calibrate end-effector to camera transform using MoveIt calibration pipeline and ArUco board.

  • Procedure: 1. Launch calibration pipeline via MoveIt. 2. Capture marker poses and compute transform. 3. Publish static TF with static_transform_publisher.

  • Launch Command:

cd ~/rsp_ws/src/rsp-project-team-emrs
git checkout real
matlab -nodisplay -nodesktop -r "run('~/rsp_ws/src/rsp-project-team-emrs/hand_eye_calib/matlab/hand_eye_calib.mlx')"

ArUco Detection and Approaching

  • Description: The robot uses computer vision to detect ArUco markers attached to trash objects and navigates to optimal picking positions.

  • Detection System:

Primary detection with OAK-D camera mounted on the robot base Secondary precise detection with RealSense D435 on the arm for pick operations Real-time pose estimation of trash objects relative to the robot

  • Approaching Procedure:

During patrol, the robot scans the environment for ArUco markers Upon detection, the robot stops and calculates the optimal approach position Robot navigates to position itself within arm’s reach of the trash object Fine positioning adjustments ensure the object is within the arm’s workspace

  • Launch Commands:

ros2 launch turtlebot4_manipulator_navigation navigate.launch.py

The above launch file sets up nav2, aruco detection and approach action servers.

ros2 action send_goal /emrs/approach_trash turtlebot4_trash_actions/action/Approach "{marker_frame: 'marker'}" --ros-args -r /tf:=/emrs/tf -r /tf_static:=/emrs/tf_static --remap __ns:=/emrs

The above command can be run for testing which sends goal to action server that starts the approach action. The whole pipeline can be run using trash_collection_task.py which undocks the robot and starts the complete pipeline.

Pick and Place

  • Description: MoveIt2-based pick-and-place functionality for trash collection.

  • Launch Command:: To run the pick and place action, ssh into the Turtlebot4 by running:

ssh -X ubuntu@10.42.0.1

replacing “10.42.0.1” with the ip address shown on the Turtlebot4 screen. Repeat this for a total of three terminals each ssh’ed into the robot. Check which USB port the arm is plugged into by running:

sudo dmesg | grep tty

and then add permissions,

chmod 666 /dev/ttyUSB0

replacing “/dev/ttyUSB0” with whatever port name you have. Also run

groups

and see if the user is in the “dialout” group. If not, run:

sudo usermod -aG dialout $USER

Then start the open-manipulator-x arm by running the following command, making sure to physically hold the robot arm near its home configuration before doing so:

ros2 launch open_manipulator_x_bringup hardware.launch.py port_name:=/dev/ttyUSB0

Note

The motors should engage and you may then let go of the arm. If there are errors, it is most likely because of the port name being wrong or permissions not being applied (may need a reboot). Then, in another terminal, run:

ros2 launch open_manipulator_x_moveit_config move_group.launch.py

Finally, run:

ros2 launch pick_place pick_place.launch.py

to see a pick and place action.

Trash Actions - Approach, Pick, and Place

Approach

This action will search for an ArUco tag in the view of the OAK-D camera on the Turtlebot4 and travel in front of it to put the Open Manipulator-X arm in range of the trash object. It uses the Approach.action interface:

string marker_frame        # TF frame of the detected ArUco marker
bool success
string message
---
float64 distance_to_goal

with the goal “marker_frame” as the name of the frame outputted by the ArUco detection node. This is usually “marker”.

Pick

This action will search for the ArUco tag of the trash object in the view of the RealSense D435 camera mounted on the Open Manipulator-X arm and will move the arm to pick up the trash object. It uses the Pick.action interface:

string marker_frame        # TF frame of the detected ArUco marker
---
bool success
string message
---
float64 distance_to_goal

with the goal “marker_frame” as the name of the frame outputted by the ArUco detection node. This is usually “marker_arm”.

Place

This action will move the arm with the trash object to the trash can, opening the gripper and depositing the trash inside. It uses the Place.action interface:

geometry_msgs/PoseStamped trash_pose
---
bool success
string message
---
float64 distance_to_goal

with the goal “trash_pose” as the pose of the arm above the trash can.
